Coating Inspection

Coating inspection is a process that involves the systematic evaluation of protective coatings applied to surfaces, such as metal structures, pipelines, and equipment, to ensure their quality, durability, and effectiveness.

The inspection aims to verify that the coating adheres properly, has the correct thickness, and meets specific performance criteria. This process helps prevent corrosion, enhance aesthetics, and extend the lifespan of the coated object. Coating inspectors use various techniques, such as visual examination, thickness measurement, adhesion testing, and specialized tools like ultrasonic or magnetic gauges, to assess the coating's integrity.

The results of the inspection guide decisions about maintenance, reapplication, or further corrective actions to maintain the protective qualities of the coating and the structural integrity of the underlying substrate.

We Can offer Following Services:

Awesome Image

NACE Coating Inspection

NACE coating inspection is a specialized process conducted by professionals trained and certified by the National Association of Corrosion Engineers (NACE).

This inspection focuses on evaluating protective coatings applied to surfaces to prevent corrosion, degradation, and other forms of deterioration. NACE provides industry standards and guidelines for coating inspection to ensure that coatings meet specific requirements and perform effectively in various environments.

During a NACE coating inspection, certified inspectors use a combination of visual assessments and advanced testing techniques to examine the coating's quality, adhesion, thickness, and overall condition.
These inspections are typically carried out in industrial settings, such as pipelines, oil and gas facilities, marine structures, and more. The inspectors follow NACE standards and procedures to ensure consistency and accuracy in their assessments.

NACE coating inspectors play a crucial role in ensuring the long-term protection of structures and equipment by identifying potential coating issues early on, recommending maintenance or reapplication as needed, and ultimately contributing to the reduction of corrosion-related costs and risks.
Their expertise helps maintain the integrity of coated surfaces, extend the lifespan of assets, and ensure compliance with industry standards.

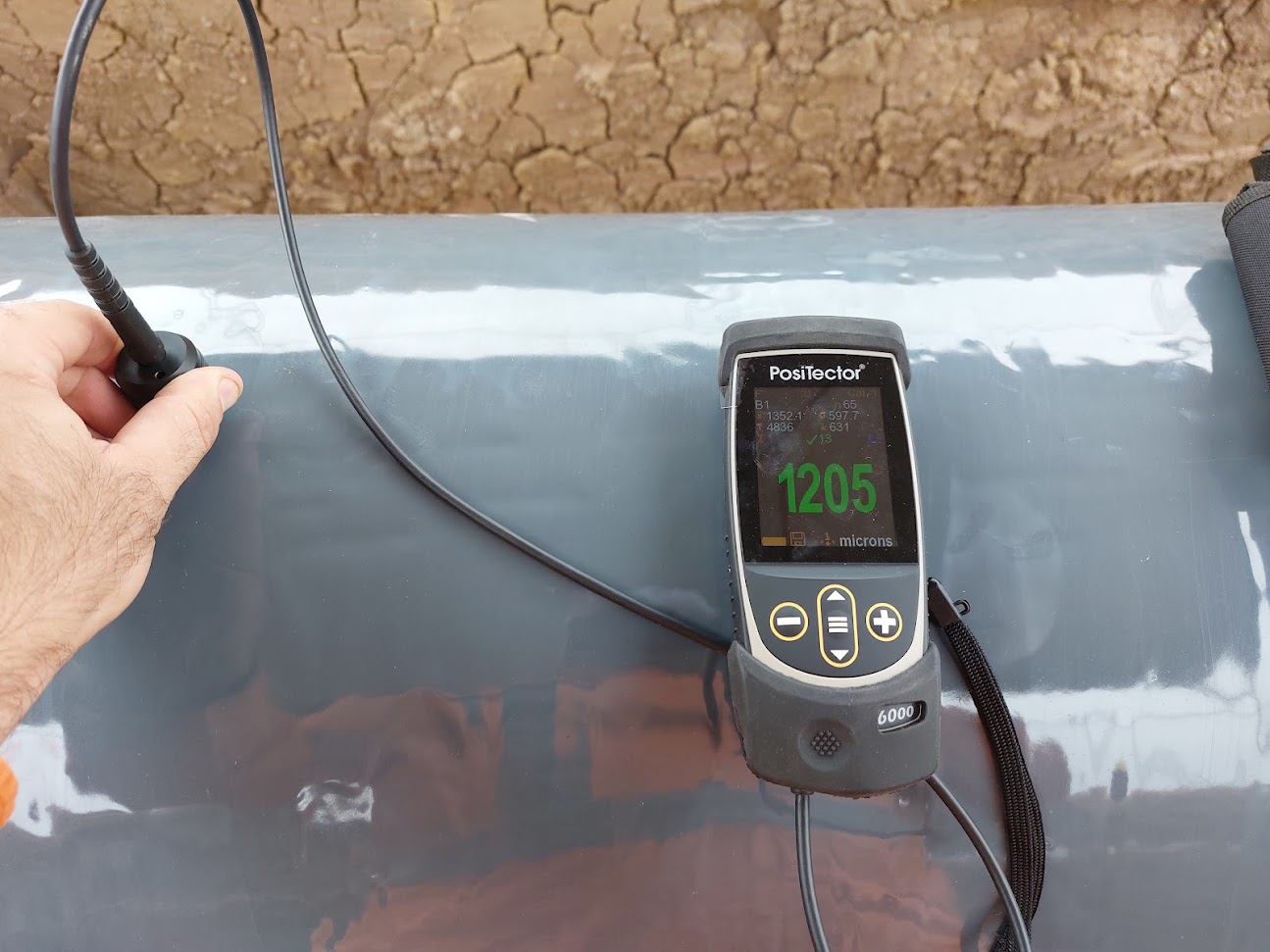

Coating Thickness

Coating thickness measurements involve assessing the thickness of a protective coating applied to a substrate, such as metal, concrete, or other materials. Coatings serve various purposes, including corrosion prevention, insulation, aesthetics, and more.
Ensuring the correct thickness is crucial for coatings to effectively perform their intended functions. Here's an overview of coating thickness measurements:

Purpose: Coating thickness measurements are conducted to verify that the applied coating meets specific requirements and standards. Insufficient thickness might not provide adequate protection against corrosion, while excessive thickness can lead to issues like cracking, peeling, or poor adhesion.

Measurement Techniques:

Non-Destructive Methods: These methods are commonly preferred as they do not damage the coating or substrate. Some popular non-destructive techniques include:

Eddy Current Testing: Measures the electrical conductivity changes due to coating thickness variations.

Magnetic Induction: Measures changes in magnetic field strength caused by the coating.

Ultrasonic Thickness Gauging: Uses ultrasonic waves to measure the time taken for a pulse to travel through the coating and return.

Destructive Methods: These methods involve removing a small section of the coating for measurement and are less commonly used due to their invasive nature. Examples include cross-sectioning and gravimetric measurements.

Equipment: Specialized instruments are used for coating thickness measurements, ranging from handheld gauges to more advanced equipment with digital displays and data storage capabilities.

Calibration: Accurate measurements require proper calibration of the equipment using standards of known thickness and properties. This ensures that measurements are reliable and consistent.

Measurement Locations: Measurements are taken at various points across the coated surface to account for potential variations. Minimum, maximum, and average thickness values might be assessed.

Standards and Specifications: Coating thickness standards are often provided by industry organizations such as NACE, ASTM, and ISO. These standards specify acceptable ranges of coating thickness for different environments and applications.

Reporting: Measurement results are documented, and reports may include details such as the location of measurements, average and range of thickness, compliance with standards, and any recommendations for corrective actions if the coating thickness is outside acceptable limits.

Coating thickness measurements play a vital role in maintaining the performance and longevity of coatings, ensuring protection against corrosion, wear, and other forms of degradation.

Holiday Testing

Holiday testing, also known as a spark test or pinhole detection, is a quality control technique used to identify discontinuities (such as pinholes or voids) in protective coatings, particularly those applied to metal substrates.

These discontinuities, if left undetected, can lead to premature coating failure and corrosion. Here's an overview of holiday testing:

Purpose: The primary goal of holiday testing is to locate areas of a coating where there might be breaches or defects that could compromise the coating's effectiveness in preventing corrosion and other forms of deterioration.

Method: The method involves applying a controlled electrical current between a probe and the coated surface. A conductive liquid, often referred to as a "holiday detector," is spread over the coated surface to provide electrical contact.
If there is a discontinuity, such as a pinhole or crack, the electrical current will pass through the coating and reach the substrate, resulting in a visible spark or an audible signal.

Equipment: The equipment used for holiday testing includes a holiday detector (a handheld instrument), a probe or brush attachment for applying the conductive liquid, and appropriate safety measures to manage the electrical current.


The coated surface is thoroughly cleaned and prepared for testing.
The conductive liquid is applied to the surface using the probe or brush attachment.
The holiday detector is set to the appropriate voltage level based on the coating type and thickness.
The probe is moved across the surface while maintaining a consistent distance to ensure uniform testing.
When a discontinuity is detected, a spark or audible signal indicates the presence of a potential defect.

Interpretation: The size and intensity of the spark or the strength of the signal can provide information about the severity of the defect. Smaller, faint sparks might indicate minor defects like pinholes, while larger sparks could signal more significant breaches in the coating.

Documentation: Holiday testing results are documented, indicating the location and size of detected discontinuities. This information helps in assessing the quality of the coating and making decisions about necessary corrective actions.

Applications: Holiday testing is commonly used in industries such as oil and gas, marine, pipeline, and infrastructure to ensure that protective coatings are effectively applied and will provide long-lasting protection against corrosion.

It's important to note that holiday testing is just one method among several available for coating inspection. The choice of technique depends on factors such as the coating type, the substrate, and the specific requirements of the application.

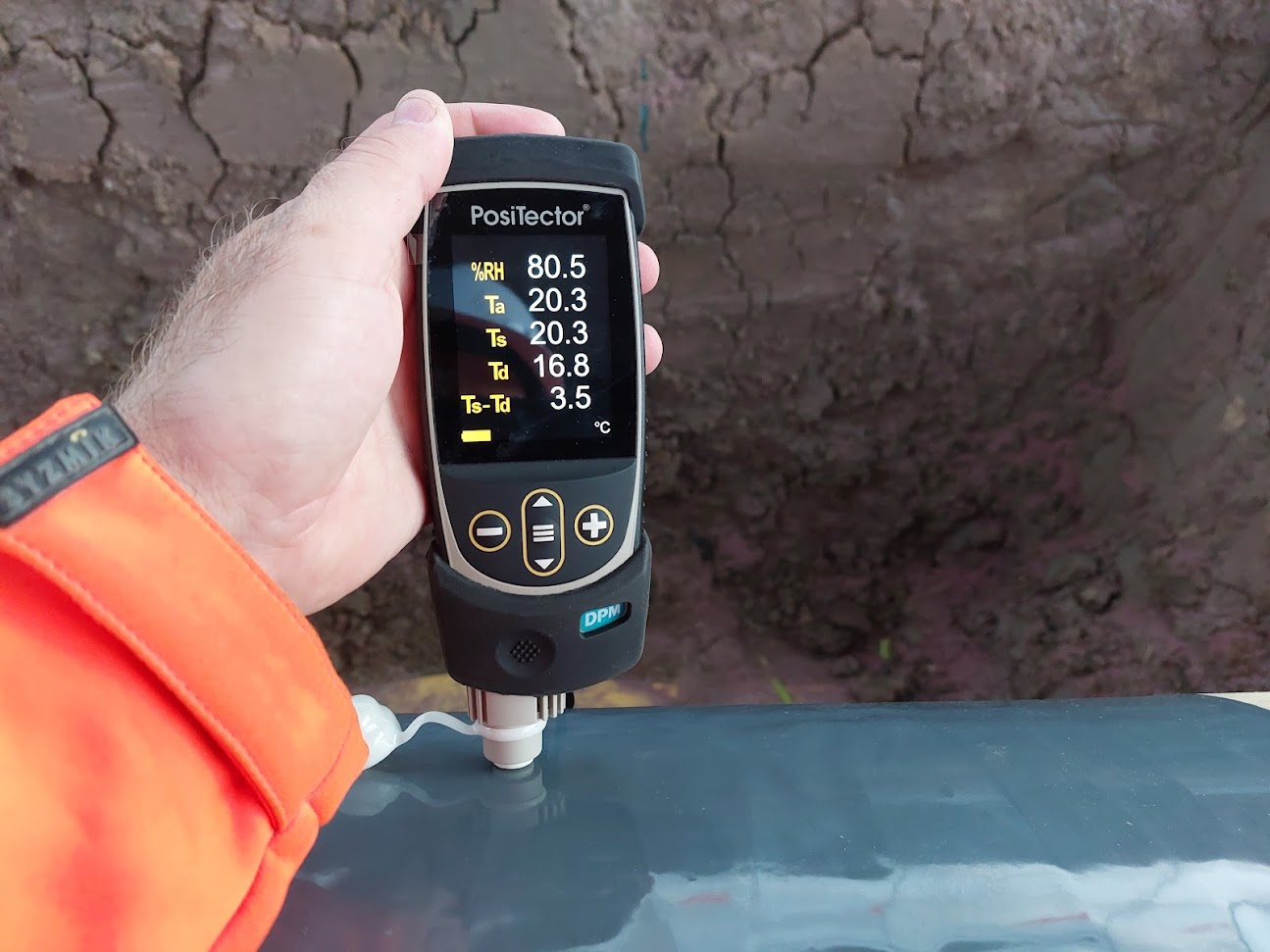

Environmental Conditions

Checking environmental conditions during coating inspection is essential to ensure that coatings are applied under suitable conditions that will result in proper adhesion, curing, and long-term performance. Here's how to effectively assess and monitor environmental conditions:


Use a calibrated thermometer to measure the ambient air temperature. This temperature affects the coating's drying and curing process.
Check the substrate temperature, as it should generally be a few degrees above the dew point to prevent condensation on the surface.

Relative Humidity:

Use a hygrometer or moisture meter to measure relative humidity. High humidity can affect coating adhesion and curing.
Calculate the dew point temperature (using a dew point calculator) to ensure it's at least 3°C (5°F) below the surface temperature to avoid condensation.

Dew Point:

Dew point meters are specialized instruments that directly measure the temperature at which air becomes saturated with moisture. This is critical to prevent coating application on surfaces with dew.

Surface Cleanliness:

Assess the surface for cleanliness using visual inspection, swab tests, or other methods to ensure it's free from contaminants like oil, grease, dirt, and dust. Dirty surfaces can compromise adhesion.

Wind Speed:

Wind speed can affect coating application by blowing away overspray or contaminants onto freshly coated surfaces.
Use an anemometer to measure wind speed. Coating under excessive wind can lead to uneven application and debris getting embedded in the coating.

Coating and Substrate Temperature Compatibility:

Ensure the coating's temperature matches the recommended range for application.
Cold coatings on a warm substrate or vice versa can cause issues like blistering or poor adhesion.

Moisture Content of Substrate:

For certain coatings, substrate moisture content is crucial. Use moisture meters to check if the substrate is dry enough for coating.

UV Exposure:

If the coating will be exposed to UV radiation, assess the expected UV intensity. Some coatings might require UV-resistant formulations for proper performance.

Monitoring Equipment Calibration:

Regularly calibrate all measuring instruments to ensure accuracy and reliability of environmental readings.

Reference to Standards:

Consult relevant industry standards (ASTM, ISO, NACE, etc.) for specific requirements regarding environmental conditions during coating application.

Recording Data:

Document all measurements and conditions in a coating inspection report. This helps ensure proper documentation and adherence to standards.


Coating applicators and inspectors should communicate effectively to ensure everyone is aware of the environmental conditions and any adjustments needed.
By carefully assessing and monitoring these environmental conditions, coating inspectors can help ensure that coatings are applied optimally and will provide the intended protection and durability.
